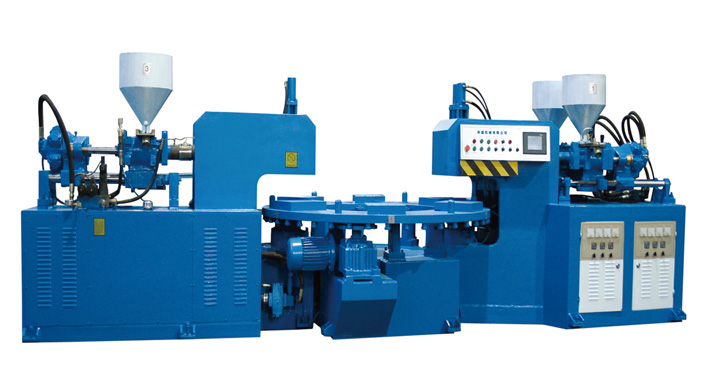

| HSYD-6 3Colour PVC Injecton Machine |
- Product material
- Feature
- Local display
- Video downloads
- Other materials
| Number of stations |
6/8/10station |
| General clamping force |
12tons |
| Pressure pushing mould size |
280×320mm |
| Minimun monld height |
150mm |
| Injector unit |
3station |
| Minimun injection material(single color) |
200g |
| Minimun injection material(two color) |
200g |
| Minimun injection material(three color) |
400g |
| Total electric consumption |
33KW |
| Measurement |
6×1.8×1.5m | |
Technical characteristic:
1.They are characterized by an optimal screw`s profile
and by a right thermal control.
2.They repeatability is assured by a sophisticated volumetric control and by the proportional valves of pressure and speed.
3.It,checks,constantly,the working status of the machine,carring out,in this way,the right”Diagnostic”and “Maintenance”procedure.
4.The procedure for the visualization and the check of the peculiar parameters of the injection process are made easy and useful.
5.The machinery uses the low platform design Conforms to the man-machine engineering.
6.Hydraulic parts and electric components of world-renowned brands are adopted.
|
