Stone cutting machine

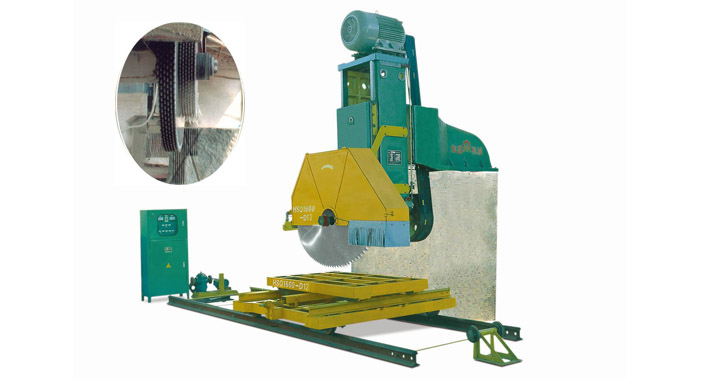

DZQ-1600 MULTIBLADE CUTTING MACHINE
  • Product material
  • Feature
  • Local display
  • Video downloads
  • Other materials
Model D4 D6 D10 D12 D16 D20
Blade diameter (φ1600mm) / (φ2200) mm
Number of blades 4 6 10 12 16 20 pc
Lifting travel 1050mm/(1350mm) mm
Max. cutting size 3500×(850;1000;1100;1200;1350;1450)×800/(1300)mm mm
Power of main motor 30 37 45 55 65 75 kw
Water consumption 8 12 20 24 32 40 m3/h
Overall dimension (L×W×H) 8200×4350×5400(5700) 8200×4550×5500(5800) 8200×4900×5600(6000) 8200×5100×5800(6200) 8200×5400×5900(6300) 8200×5500×6100(6400) mm
