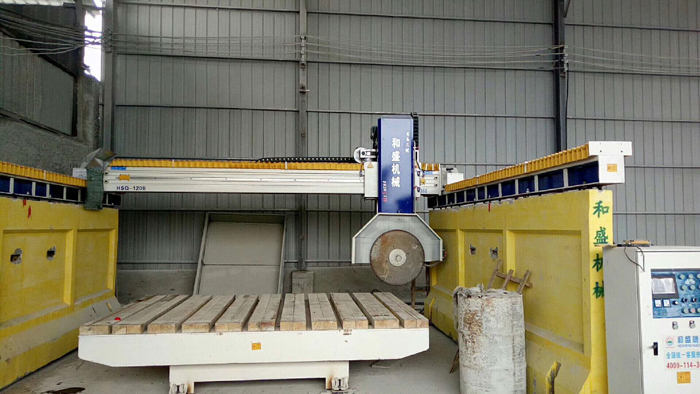

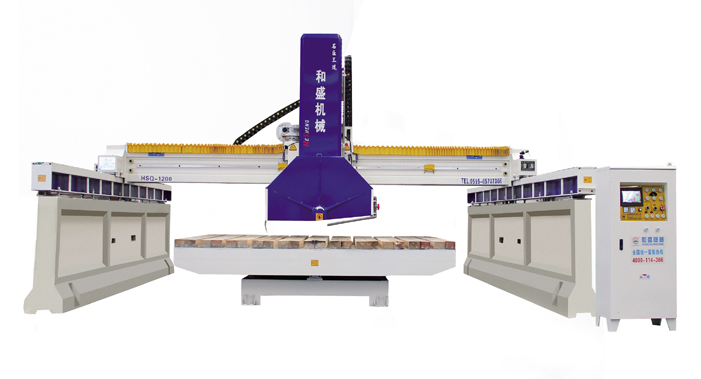

HSQ-1200 Bridge Type Edge Cutting 【bridge cutter丨bridge cutting machine丨bridge saw】

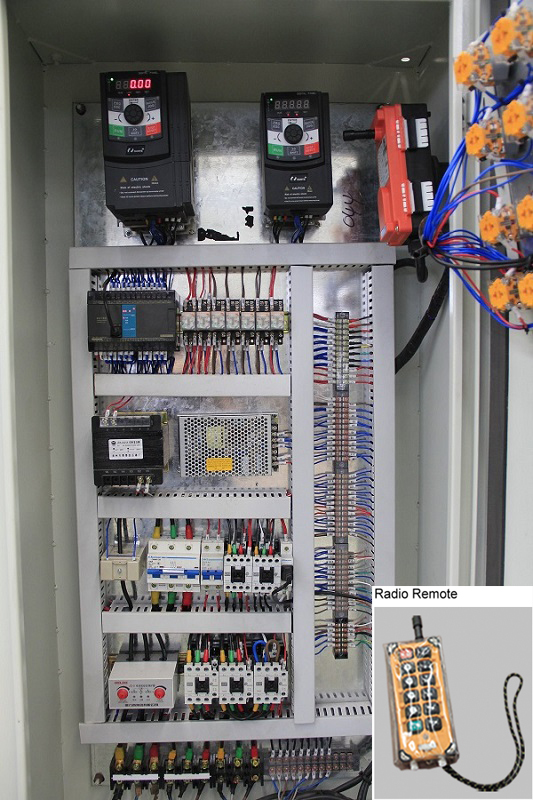

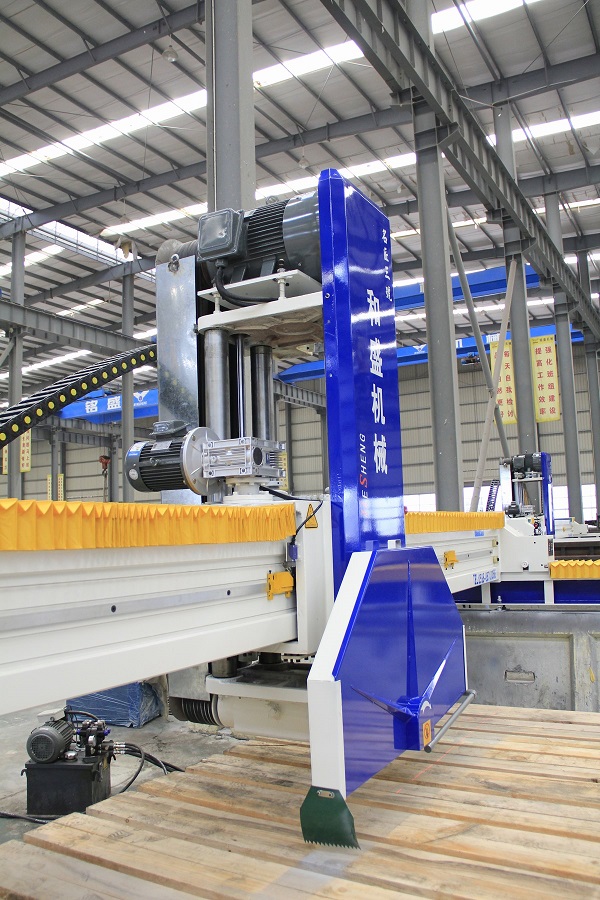

   HSQ-1200 Bridge Type Edge Cutting Machine uses wide-span bridge type structure, and is equipped with rotary cutting table. By moving the girder horizontal stone slicing can be realized. With this machine, slabs of great lengths and depths can be processed with flexibility in rotation, precise in positioning, great in strength, and stable in operation. Imported frequency converter is used for the mainbody to achieve stepless adjustment of cutting speed. It is applicable of cutting valuable of cutting valuable tombstones.

Blade diameter Φ600-Φ1200 mm
Blade vertical stroke 630 mm
General power 22 kw
Water consumption 4 m3/h
Size of cutting table 3000×2000 mm
Cutting table rotation range 0°,90° n°
Dimensions(L×W×H) 6400×4700×3800 mm

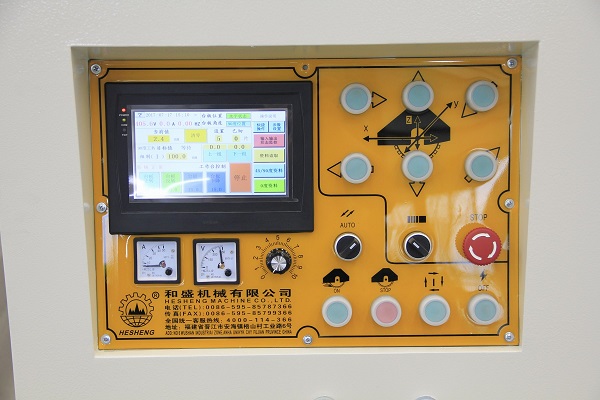

Beam slicing method PLC computer control
Weight 6 T
